Scanbed Alpha Junior Bed

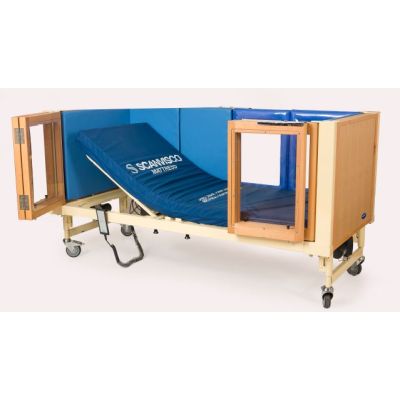

The ScanBed Alpha Junior is a new short four section profiling bed developed to meet the needs of the smaller adult and children but has all the features of a community bed, plus an integral bed extension. It has been specifically designed to accommodate the profiling required for children therefore maximising the potential for the backrest and knee break to be in the correct position when profiling. The three bar side rails have 60mm gaps between each bar that comply with recommended guidelines. A 4th bar is available as a cost option .The bed can also be extended by 15cm along with the side rails if required.   Note the Image dispays bed fitted with optional side wedges

NB we supply this product in Ireland and Scotland only

Key features

• Optimal Height Adjustability 40 – 80cm standard setting / 33 - 73 cm low setting
• Variable Platform Height Setting Accommodates both taller and shorter children's transfer needs.
• Stable Construction Provides a safe environment and guaranteed longevity
• Easy Assembly Fast, convenient construction enabling efficient service.
• Easy Clean The modular design facilitates infection control recommendations therefore enabling easy maintenance.

Technical Specifications

• Outside width: 89cm
• Inside width: 84 cm
• Outside length: 203cm
• Inside length: 183cm (+20cmextension)
• Height adjustable: 33--‐73 cm or 40--‐80cm
• Mattress support dimensions 4--‐sectioned: 74--‐17--‐30--‐59 cm
• Backrest Angle 0 to 70 degrees
• Thigh Angle 0 - 20 degress
• Leg rest Lift 0 - 25 degrees
• Tilt Option 9 degrees

 Product Weights

• Bed End – Each 19.15kg
• Mattress Support Head End 22.1kg
• Mattress Support Foot End 18.85kg
• Side Rail--‐Each 5.75kg
• Connection Bar – Each 0.86kg

Safe Working Loads

• Backrest – 80kg
• Knee Break –60 kg
• Foot Section – 60 kg
