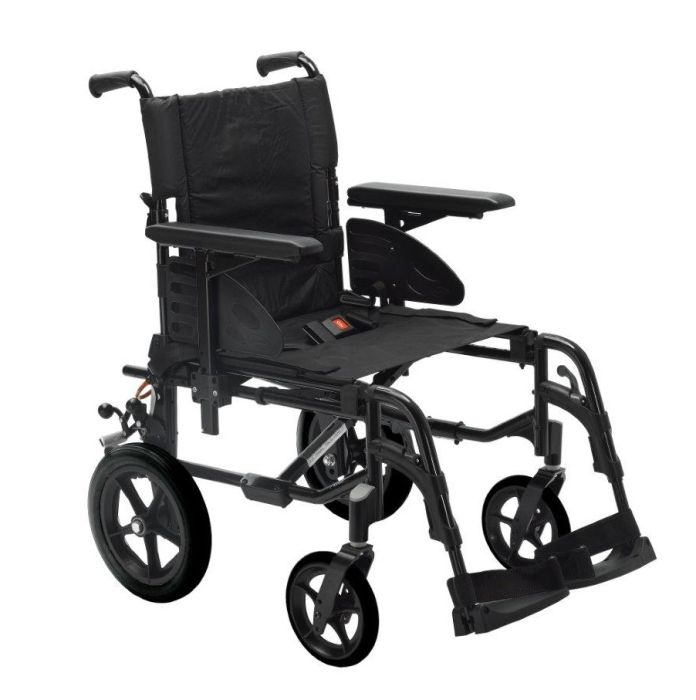

Invacare Action 2 Transit Wheelchair
The Invacare Action 2NG is a high quality entry level wheelchair for occasional users. This listing is for the transit version designed to be pushed by an attendant.&... read more
Description
The Invacare Action 2NG is a high quality entry level wheelchair for occasional users. This listing is for the transit version designed to be pushed by an attendant. It is fitted with 12" wheels and push handles. We also supply the Self propelled version - see related products below. The Action 2NG specifications meet the needs of clients refusing to compromise on safety or comfort. The next generation Action 2NG offers a low total weight for easy folding, handling and transportation, combined with good driving abilities. It's easy handling makes this wheelchair ideal for basic needs with quality components for effortless driving performance both in doors and out. With a weight of 14.9 kilos, the Invacare Action 2NG provides a functional and practical day to day chair with adjustable armrests and footrests for optimum comfort.
It features a folding frame making it easy to handle when transporting or storage. The tried and trusted Action brand provides a reliable wheelchair with cross compatibility of parts across the Action family
Key features
- Max user weight 125kg (19.7 stone)#
- Crash tested ISO 7176-Part 19
- Lap belt (adjustable both sides)
- Anti-tippers (24" wheels only)
- Anthracite Black
- Choice of 5 seat widths 15" - 19"
- Depth adjustable 16" to 17"
- Black padded nylon seat upholstery
- Half folding 7° backrest 17" (430mm)
- Swing in/out 80° detachable hanger with adjustable
- heel strap
- Removable, lightweight and height adjustable full arm
- (200mm > 260mm)
- 12" X 2" fixed axle, black solid tyre wheel forward Position
- Black 8" x 1.1/4" (200mm x 25mm) solid front castor
- aluminium fork
- Push to lock brakes
Specification
- Maximum user weight 125 kg
- Overall length with leg rests 870 – 1140 mm
- Overall width 540 – 710 mm
- Folded length 870 – 1140 mm
- Folded width 255 – 355 mm
- Folded height 935 mm
- Total mass from 15 – 17 kg
- Mass of the heaviest part 10 – 12 kg
Technical
- Maximum user weight 125 kg
- Overall length with leg rests 870 – 1140 mm
- Overall width 540 – 710 mm
- Folded length 870 – 1140 mm
- Folded width 255 – 355 mm
- Folded height 935 mm
- Total mass from 15 – 17 kg
- Mass of the heaviest part 10 – 12 kg
- Static stability Downhill: 0° – 17°
- Static stability Uphill: 0° – 7°
- Static stability Sideways: 0° – 17°
- Seat plane angle 0° - 8° (0°/3°/6°)
- Effective seat depth 435 – 460 (400-425) mm
- Effective seat width 370 – 505 (380/405/430/455/480/505) mm, in increments of 25 mm
- Seat surface height at front edge 480 (410/435/460/485/510) mm, in increments of 25 mm
- Seat surface height at rear edge 455(385/410/435/460/485) mm,in increments of 25 mm
- Backrest angle Range: 0° / +30°
- Fixed: 90° (7°)
- Recliner: 90° (0°/+30°), in increments of 10°
- Backrest height 470 – 550 390/400/410/430/510)mm
- Footrest to seat distance 330 – 460 mm,in increments of 10 mm
- Leg to seat surface angle 0° – 80°
- Armrest to seat height Range: 200 – 280 mm
- N°1: 200 – 280 mm
- N°2: 240 mm
- Front location of armrest structure 190 – 350 mm
- Hand rim diameter 535 mm
- Horizontal location of axle –55 / +42,5 mm
- Minimum turning radius 790 mm
- Stowage width 250 – 320 mm
- Stowage height 566 – 1000 mm
- Stowage length from 695 – 1130 mm
- Overall length without leg rests 655 – 925 mm
- Overall height 935 mm
