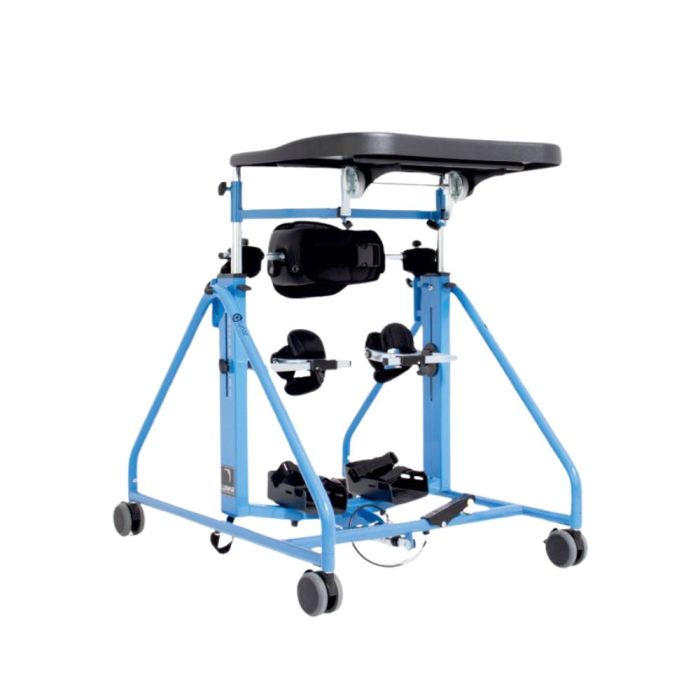

Lunar Paediatric Standing Frame

The Lunar from Akces Med is an innovative standing frame that enables standing and maintaining an upright position, thereby supporting therapy and rehabilitation. It has been designed with full safety and high comfort in mind for both the user and caregivers or medical staff, thanks to the use of modern solutions such as smooth and stepless adjustment of stabilizing elements for the user. The product provides extensive functionality while maintaining easy and intuitive operation.

Key features

• Smooth and Stepless Adjustment: The product components work together with reduced resistance.
• Increased Durability: Thanks to the smooth and stepless adjustment, the operation of the components is much smoother, resulting in minimizing undesired micro-movements of regulated elements.
• Quiet Operation: Operation between smoothly adjustable elements is significantly quieter compared to standard solutions.
• Stability: The stable base is equipped with wheels with independent brakes, allowing for easy movement of the standing frame between rooms.
• Ergonomic: The use of ergonomic knobs and position adjuster makes the standing frame extremely simple and intuitive to operate.
• Mobile: The standing frame is lightweight and compact, allowing for use in small spaces.

Prone/Supine Standing

Lunar allows both prone and supine standing, which significantly impacts muscle tone normalization and balance. This feature enables user position adjustment, providing therapists with greater control over the therapeutic process.

Lower Limb Extension

Supporting proper posture and joint stability is a key role of Lunar. By enabling muscle stretching, the standing frame prevents contractures, dislocations, and hip joint dysplasia, supporting the overall condition of the user.

Knee Joint Stabilization

Equipped with knee pads with independent depth, height, and width adjustment, Lunar offers optimal knee joint stabilization. The use of smooth and stepless adjustment allows for individual and comfortable knee protection.

Precise Trunk and Pelvic Adjustment

With independently adjustable hip and chest belts, Lunar allows for trunk adjustment in terms of up-down, side, and rotation. This precise adjustment adapts to the anatomical and biomechanical characteristics of the user, contributing to improved balance and motor function.

Specification

Size 1

• Indicitive user height 75-100cm
• Chest belt height 57-79cm
• Pelvic belt height 39-62cm
• Chest/pelvic belt width 14-22cm
• Chest/pelvic belt circumference 55-68cm
• Knee support width 14-24cm
• Knee support height 12-28cm
• Tray height 48-75cm
• Tray tilt angle -20° to 20°
• Footer spacing 13-34cm
• Footer length 19cm
• Lower limb spacing angle
  • For user 75cm: 50°
  • For user 100cm: 30°
• Tilt angle
  • -20° to 0°
  • 0° to 20°
• Headrest height 70-98cm
• Max user weight 35kg

Size 2

• Indicitive user height 95-125cm
• Chest belt height 69-91cm
• Pelvic belt height 50-70cm
• Chest/pelvic belt width 16-22cm
• Chest/pelvic belt circumference 60-73cm
• Knee support width 16-28cm
• Knee support height 24-40cm
• Tray height 59-87cm
• Tray tilt angle -15º to 15°
• Footer spacing 13-36cm
• Footer length 23cm
• Lower limb spacing angle
  • For user 95cm: 40°
  • For user 125cm: 30°
• Tilt angle
  • -15° to 0°
  • 0° to 15°
• Headrest height 86.113cm
• Max user weight 45kg

Size 3

• Indicitive user height 120-150cm
• Chest belt height 82-108cm
• Pelvic belt height 62-82cm
• Chest/pelvic belt width 20-26cm
• Chest/pelvic belt circumference 67-85cm
• Knee support width 16-30cm
• Knee support height 32-48cm
• Tray height 73-104cm
• Tray tilt angle -10° to 10°
• Footer spacing 13-42cm
• Footer length 23cm
• Lower limb spacing angle
  • For user 125cm: 35°
  • For user 150cm: 25°
• Tilt angle
  • -10° to 0°
  • 0° to 10°
• Headrest height 105-140cm
• Max user weight: 55kg
