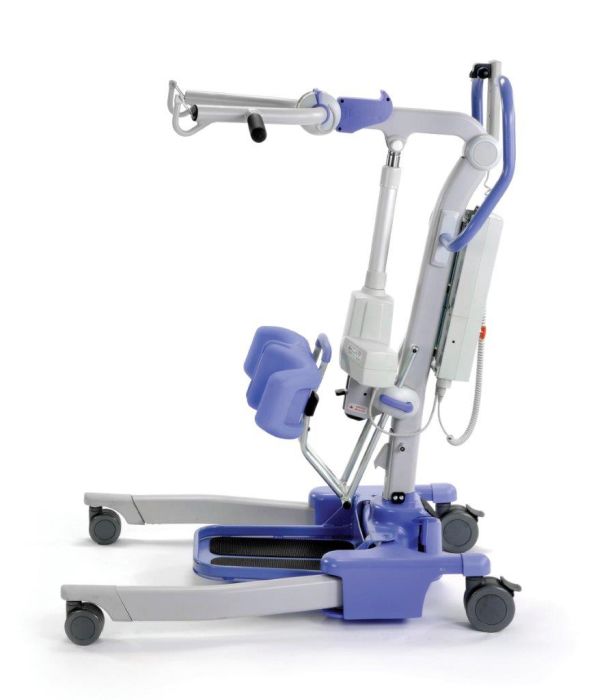

Oxford Journey Folding Standing Hoist 155 SWL

Brand
Product Code
OXF-JOURNEY
Compact, portable and exceptionally versatile.  The new Journey stand aid from Oxford incorporates the latest design and manufacturing technologies to produce the most compact and portable, folding stand aid on the market today. The Oxfo... read more
Price
€3,357.90 €2,730.00
Lead Time
5 - 7 Working Days
Free delivery across Ireland on orders over €250
Any questions? Just Ask

Compact, portable and exceptionally versatile.  The new Journey stand aid from Oxford incorporates the latest design and manufacturing technologies to produce the most compact and portable, folding stand aid on the market today. The Oxford® Journey lift is an ultra compact, portable folding stand aid with best-in-class functionality. It is compact and lightweight allowing care-givers to manoeuvre in tight spaces and can be folded for easy storage or transportation. The unique adjustable cow-horn mechanism supports a wider range of patient heights and sizes, allowing your facility to have one lift that meets the needs of many.

The Journey has the option of both a Standing or Transport sling, providing the carer with the option of performing various care duties including: standing, toileting, point to point transfers, walking and rehabilitation activity. Unlike other stand aids on the market, the Journey can fold making it easy to transport and store. This functionality gives active users the option to travel outside the confines of their own home.

The Journey’s unique adjustable cow-horn ensures maximum flexibility and improved patient comfort. With three cow-horn height options, the Journey can support a wider range of patient heights and sizes. Simply pull back the trigger mechanism on the boom and select the required cow-horn height

The Smart™ Monitor control system records the exact amount of work completed by the actuator each and every time the lift is used, regardless of a patient’s weight or lift height covered. The intelligent system advises the user to schedule key maintenance helping to ensure your lift remains in optimum condition.It identifies total lift actuations and work completedn Identifies lift overloads (exceeding SWL),identifies service interval periods & increases patient safety and product service life

By removing the foot tray, the Journey transforms into a rehabilitation aid that allows a patient to fully stand. Once standing, the patient can be encouraged to walk independently. The Journey’s contoured knee pad is height adjustable to ensure the patient feels comfortable and fully supported during transfer. A retractable safety belt provides additional support for patients needing further reassurance.

Key features

  • Safe working load 155kg / 24st / 342lbs
  • Compact folding design for easy storage and transportation
  • Unique adjustable cow horn function accommodates a range of patient sizes
  • Smart Monitor diagnostic and service controls as standard
  • Ergonomic design considerations and interaction points
  • Height adjustable knee pad with retractable safety belt
  • Removable foot tray for walking/rehabilitation activity

Specification

  • Safe Working Load 341 Ibs 155 kgs
  • Maximum Overall Length 39.4 inches 1000 mm
  • Minimum Overall Length 36.8 inches 935 mm
  • Maximum Overall Height 63.0 inches 1600 mm
  • Minimum Overall Height 44.5 inches 1130 mm
  • Height (Folded) 20.5 inches 525 mm
  • Depth (Folded) 41.0 inches 1040 mm
  • Widest Point (Between support handles) 26.8 inches 680 mm
  • Maximum Height to Attachment Point 60.2 inches 1530 mm
  • Minimum Height to Attachment Point 28.4 inches 720 mm
  • Turning Radius 45.1 inches 1145 mm
  • Legs Open - External Width 38.2 inches 970 mm
  • Legs Open - Internal Width 34.5 inches 875 mm
  • Legs Closed - External Width 27.0 inches 685 mm
  • Legs Closed - Internal Width 22.2 inches 590 mm
  • Overall Height of Legs 4.3 inches 110 mm
  • Ground Clearance 1.2 inches 30 mm
  • Front Twin Castors 3.0 inches 75 mm
  • Rear Braked Castors 4.0 inches 100 mm

Weights Imperial Metric

  • Mast, Base & Boom Assembly 82.4 Ibs 37.4 kgs
  • Power Pack 6.2 Ibs 2.8 kgs
  • Total 88.6 Ibs 40.2 kgs
  • Base Assembly 30.2 Ibs 18.2 kgs
  • Mast & Boom Assembly (not including battery) 42.3 Ibs 19.2 kgs
