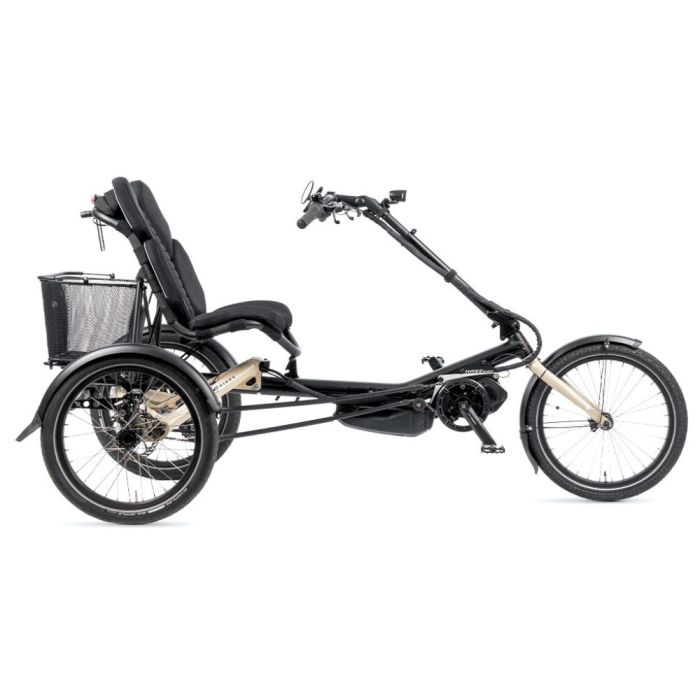

Trigo Up E Trike

The Trigo Up E trike is a light-weight three-wheeler with a comfortable sitting position is built for high stability to prevent tipping. Fully equipped with space for accessories – and riders from 4’7” to 6’7” (1.4 to 2 m) in height – the Trigo Up E delta trike can be easily adjusted to suit different riders with various needs. Including all the features and benefits of the Trigo Up trike, the Trigo Up E boasts a Shimano Steps mid-motor to provide powered assistance on both long bike rides and short errands.

Hase tandems, trikes and bikes are approved  medical  devices  as  per  the  European  Directive  (2017/745) MDR (Medical Device Directive)

Key features

• Available with underseat or overseat handlebars
• Adjustable handlebars
• Vario comfort seat
• Shimano Steps electric motor

Specification

• Frame aluminum
• Total length 70½”–82¾” (179–210 cm), w/o front wheel 61” (155 cm)
• Total width 33” (84 cm)
• Seat height 23”–26¼” (58.5–66.5 cm)
• Fork aluminum
• Front boom aluminum
• Transport area Basket holder RACKTIME / Basket BASKIT max. load 22 lb (10 kg)
• Max. load 309 lb (140 kg)
• Weight 66 lb (30 kg)
• Pedelec-Motor Shimano Steps E5000
• Battery 504  Wh
• Brake system echanical disc brakes / with parking-brake mechanism
• Gear system 8-speed Nexus gear hub / twist shifter
• Drive system HASE BIKES Differential
• Wheels front 20“ Kenda / back 20“ Big Apple 58 – 406 mm with reflective sidewalls / black aluminum double-walled rims / SAPIM stainless-steel spokes
• Fenders SKS matte black
• Lighting powered by motor battery / B+M Lumotec iQ Myc / B+M Toplight 2C Plus
• Color Light ivory, semi-gloss / jet black
