The Pitchoune Kalin is a specialist electric paediatric bed designed for children aged 3 to 12 years. Featuring a 160 x 80 cm bed platform, adjustable height from 300 to 770 mm, electric profi... read more
Description

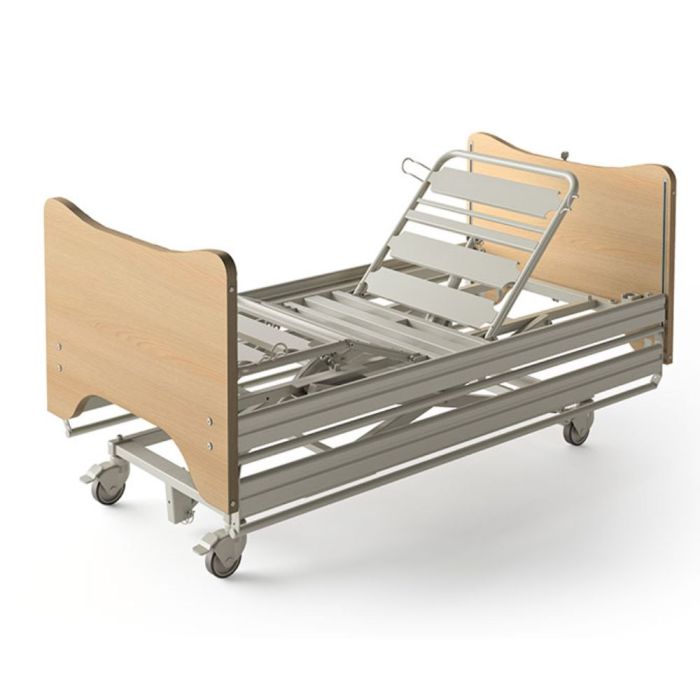

The Pitchoune Kalin has been developed specifically as a children’s care bed rather than adapting a conventional adult profiling bed. Designed for children aged 3 to 12 years and conforms to French AFSSaPS/ANSM health and safety recommendations referenced in the product literature.
Developed with safety, comfort and easier care in mind, the Pitchoune Kalin combines a compact 160 x 80 cm non-divisible bed platform with electrically powered adjustment and a low minimum platform height of just 300 mm. This makes it suitable for home care and professional care environments where safe access, positioning and transfers are important.
The bed is recommended for children under 146 cm in height and incorporates safety-focused side rail dimensions intended to minimise hazardous gaps around the bed platform.
This bundle deal comes complete with an Alova pressure relieving mattress with a non slip base and waterproof cover, set of Wooden / Epoxy full length side rails & a patient lifting pole.
Low 300 mm Platform Height
A major feature of the Pitchoune Kalin is its low minimum bed platform height.
The mattress platform can be lowered to 300 mm, helping make getting out of bed and bed-to-chair transfers easier. It can then be electrically raised to a maximum height of 770 mm, allowing carers to position the bed at a more practical working height when providing assistance.
Three Electric Functions
The Pitchoune Kalin provides three electrically powered functions, enabling the bed position to be adjusted to support comfort, care and positioning requirements.
The bed includes an electric backrest and powered height adjustment, while the leg section incorporates knee-break adjustment using manual cranks.
The manufacturer specifies a maximum backrest angle of approximately 70°, with the thigh section adjustable to approximately 40.3° and an additional manual adjustment of approximately 14.5°.
Safety-Focused Side Rail Design
The Pitchoune Kalin has been designed with particular attention to entrapment risks.
The spacing between the side rails, or between two structural components, is specified as 65 mm or less. The space between the bed platform and the bottom of the side rail is also specified as no greater than 65 mm.
Easy Mobility and Braking
The bed is mounted on four 100 mm castors with independent brakes, allowing it to be repositioned when required.
Key features
- Specialist paediatric care bed for children aged 3 to 12 years
- Recommended for children below 146 cm in height
- Compact 160 x 80 cm non-divisible mattress platform
- Alova pressure relieving mattress included
- Platform height adjustable from 300 to 770 mm
- Three electric functions
- Electrically adjustable backrest
- Adjustable leg section with knee break
- Low 300 mm position can make bed access and transfers easier
- Side rail spacing designed to remain at or below 65 mm
- Lockable handset supplied as standard
- Four 100 mm castors with independent brakes
- Suitable for home and collective care environments
Specification
- Recommended age: 3 to 12 years
- Recommended child height: Below 146 cm
- Bed platform: 160 x 80 cm
- Platform construction: Non-divisible platform with welded metal slats
- Mattress included: Alova PEDIA Comfort 160 x 80 x 14 cm mattress
- Mattress platform to top rail: 37cm
- Height adjustment: 300–770 mm
- Electric functions: 3
- Backrest: Electrically adjustable
- Maximum backrest angle: 70°
- Thigh section angle: Approx. 40.3°
- Additional leg adjustment: Approx. 14.5°, manual crank
- Castors: 4 x 100 mm with independent brakes
- Central braking: Optional
- Motorisation: LINAK IP54
- Safe Working Load: 170 kg
- Patient allowance: 135 kg
- Mattress allowance: 20 kg
Conforms to the following Standards
EN ISO 13485: 2016 (/AC:2018) ; EN ISO 14971: 2012 ; EN ISO 10993-1: 2009 (/AC:2010) ; EN ISO 10993-5: 2009 ; EN ISO 15223-1: 2016 ; EN 62366: 2008 ; EN 60601-1: 2006 (/A1:2013) ; EN 60601-1-6: 2010 ; EN 60601-1-11:2010 ; EN 60601-2-52: 2010 (/AC:2011) ; EN 50637: 2017.
FAQs
Who Is the Pitchoune Kalin For?
The Pitchoune Kalin is designed for younger users who require the support and positioning functions of a specialist paediatric care bed.
Its low-height platform, adjustable profiling functions, enclosed side rail options and compact sleeping surface make it suitable for use where conventional adult nursing beds may not provide appropriate dimensions or safety characteristics for a child.
A professional assessment should be carried out to determine the appropriate bed configuration, side rail arrangement, mattress and accessories for the individual child and care environment.
Why Choose the Winncare Pitchoune Kalin?
The Winncare Pitchoune Kalin Children’s Bed combines specialist paediatric dimensions with electric positioning, a low minimum height and safety-focused side rail configurations.
Its 300–770 mm height range can support both child access and carer ergonomics, while the choice of domestic-style wooden rails or collective-care epoxy rails allows the bed to be configured for different environments.
For families, carers and healthcare professionals requiring a purpose-designed paediatric profiling bed, the Pitchoune Kalin provides a flexible combination of positioning, safety and child-friendly styling.
